Crosswater Gallery 8 Walk In Shower Enclosure 8mm Panels With Multiple Configurations – Brushed Brass

Crosswater Gallery 8 Walk In Shower Enclosure 8mm Panels with Multiple Configurations – Brushed Brass

Crosswater Gallery 8 Walk In Enclosure in Brushed Brass finish offers a unique flexibility in designing your perfect shower enclosure. Choose from a variety of configurations to find a perfect match for your bathroom space.

Looking for a matching brassware? Shop the full MPRO Range here

Please note: When considering your perfect configuration, we recommend planning that allows for 500mm minimum entry space.

Glass Panel features:
• Constructed from 8mm toughened safety glass for a luxurious showering experience (quality certification BS EN 12150)
• Comes with Crosswater Clear – a protective, easy clean glass coating
• Broad size selection: 255mm – 1355mm (If you add the wall profile, this adds 5mm to the width and also has a 15mm adjustment)
• Approved quality standard – BS EN 14428
• Polished edge glass for extra safety
• Reversible design – can be installed on the left or right-hand side
• 1997mm high
• Glass Panels over 455mm width will require a bracing bar to provide stability
• Suitable for either tiled floor (wet room) or shower tray installation

For extra protection against water escaping the shower enclosure please see the Crosswater Gallery 8 Bottom Seal here

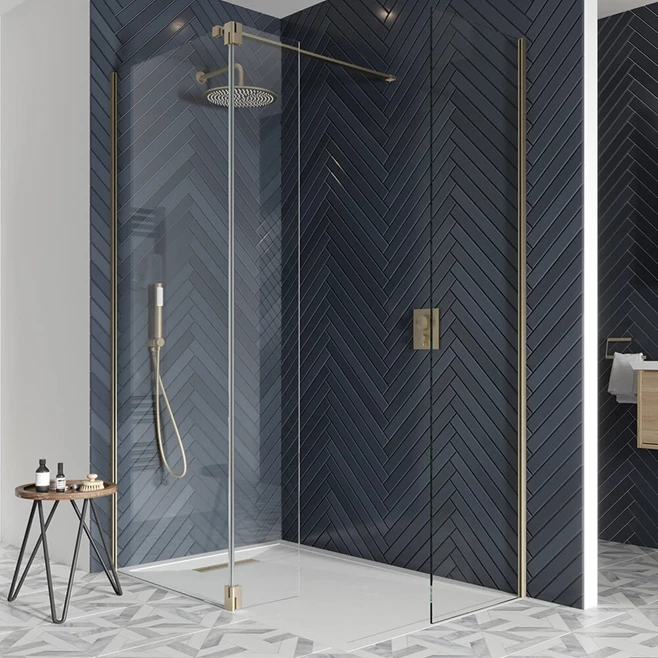

Hinged 8mm 180° Deflector Panel features:
• Provides extra protection against splashing water
• 180° outwards rotation allowing easy shower access
• Made from 8mm toughened safety glass with a polished edge & Crosswater Clear coating
• Comes with brass hinges & a clear PVC glass-to-glass and bottom seal
• Measures 1990mm high x 300mm wide

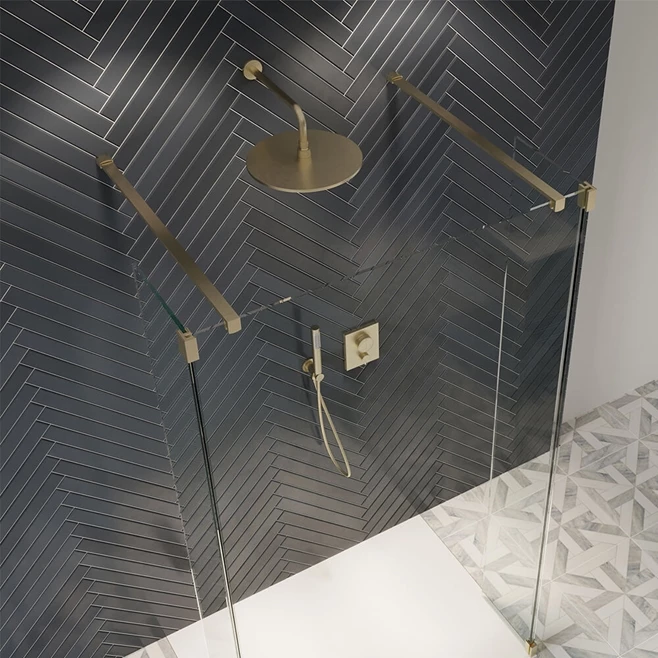

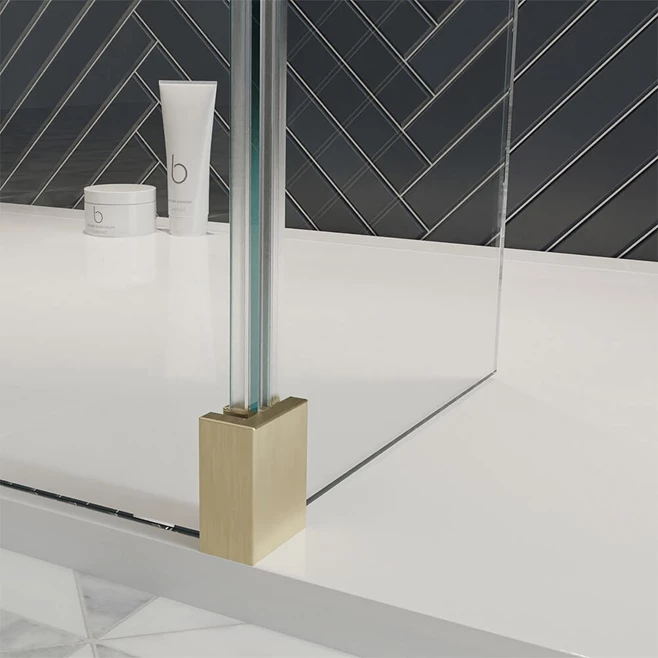

Fixed Deflector 8mm Glass Panel features:
• Provides extra protection against splashing water
• Made from 8mm toughened safety glass with a Crosswater Clear coating
• Fixed at a 90° degree angle
• Comes with brass brackets & a clear PVC glass-to-glass seal
• Optional bottom seal sold separately – please see our recommended extras
• Measures 1997mm high x 255mm wide

Please note: the glass is extremely well packaged to prevent damage in transit.

Wall Profile features:
• Made from 304 Stainless Steel with four wall fitting points
• 2000mm high
• 15mm adjustment for easy fitting against out-of-true (askew) walls
• Comes with a clear PVC squeeze gasket for easy adjustment and stability
• Includes profile cover cap to cover fixtures and fittings
• The wall profile alone can support panels up to 455mm width but panels 555mm and wider will require a bracing bar for additional stability

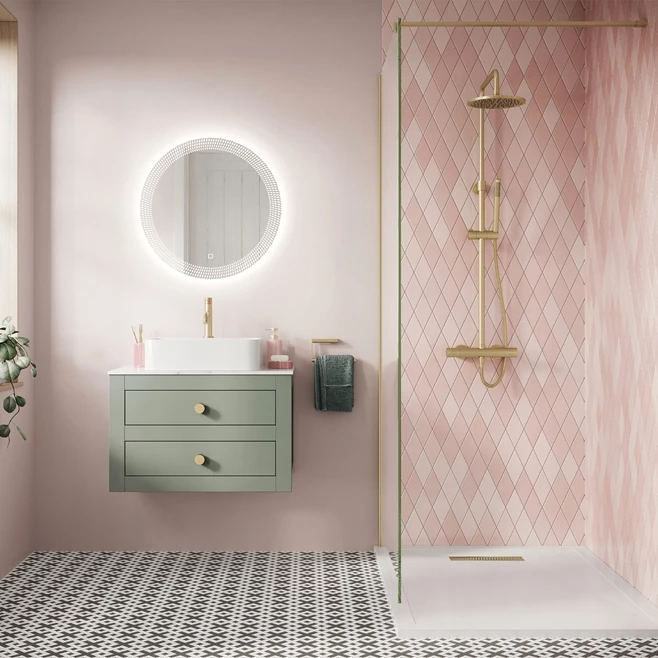

Wall Bracing Bar features:
• Made from 304 Stainless Steel (stabilising bar) & Brass (wall bracket/glass clamp)
• Measures 1200mm and can be cut to size
• Can be used with glass panels with or without a fixed or hinged deflector panel
• One bracing bar can support one fixed panel of maximum width 1355mm

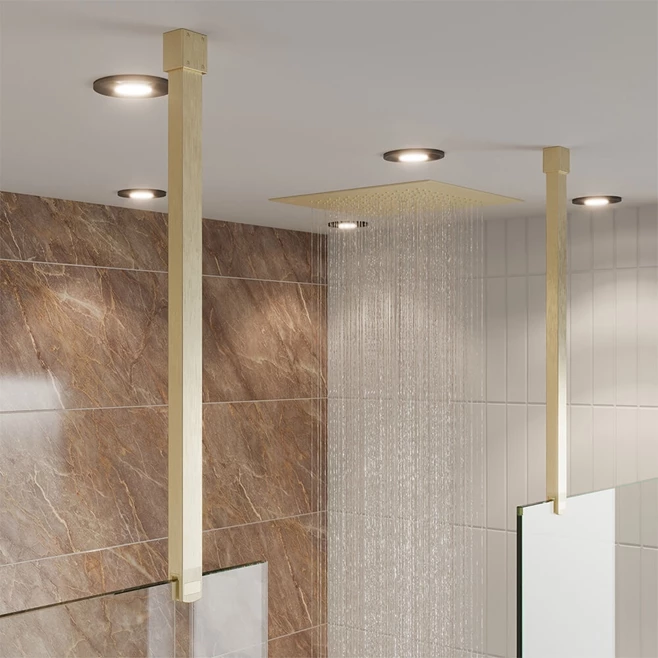

Ceiling Bracing Bar features:
• Ceiling mounted with 2 fitting points
• Made from 304 Stainless Steel (stabilising bar) & Brass (wall bracket/glass clamp)
• Measures 600mm and can be cut to size
• Not suitable for panels over 955mm & any panels with a fixed or hinged deflector panel

T Bracing Bar features:
• Made from 304 Stainless Steel (stabilising bar) & Brass (wall bracket/glass clamp)
• Each bracing bar measures 1200mm and can be cut to size & is supplied with a colour matching T-piece connector
• Suitable for use with 2 fixed panels – 1st panel of maximum width 1355mm & 2nd panel of maximum width 955mm

Fixtures and fittings having been vigorously tested to maintain performance & longevity – tested against: 48 hour salt spray, chemical resistance, humidity & accelerated life cycle.

This product is covered by a Lifetime manufacturer’s guarantee (subject to online registration – please click here for further details)
