Crosswater Gallery 10 Walk In Shower Enclosure 10mm Panels With Multiple Configurations – Brushed Brass

Crosswater Gallery 10 Walk In Shower Enclosure 10mm Panels with Multiple Configurations – Brushed Brass

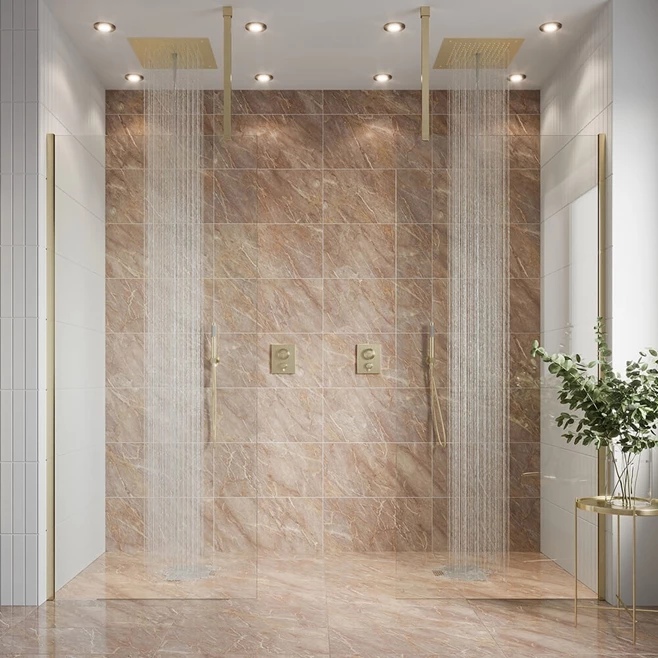

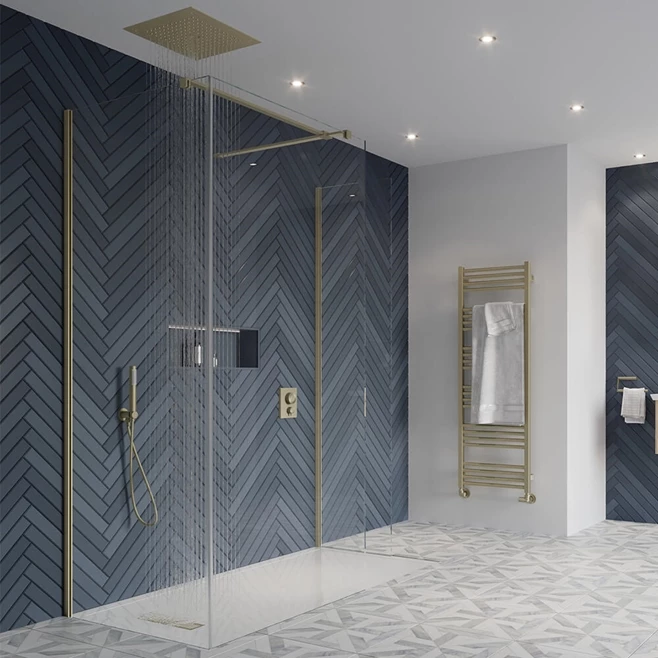

Crosswater Gallery 10 Walk In Enclosure in Brushed Brass finish offers a unique flexibility in designing your perfect shower enclosure. Choose from a variety of configurations to find a perfect match for your bathroom space.

Looking for a matching brassware? Shop the full MPRO Range here

Please note: When considering your perfect configuration, we recommend planning that allows for 500mm minimum entry space.

Glass Panel features:
• Constructed from 10mm toughened safety glass for a luxurious showering experience (quality certification BS EN 12150)
• Comes with Crosswater Clear – a protective, easy clean glass coating
• Broad size selection: 255mm – 1355mm (If you add the wall profile, this adds 5mm to the width and also has a 15mm adjustment)
• Approved quality standard – BS EN 14428
• Polished edge glass for extra safety
• Reversible design – can be installed on the left or right-hand side
• 1997mm high
• Glass Panels over 455mm width will require a bracing bar to provide stability
• Suitable for either tiled floor (wet room) or shower tray installation

For extra protection against water escaping the shower enclosure please see the Crosswater Gallery 10 Bottom Seal here

Hinged 8mm 180° Deflector Panel features:
• Provides extra protection against splashing water
• 180° outwards rotation allowing easy shower access
• Made from 8mm toughened safety glass with a polished edge & Crosswater Clear coating
• Comes with brass hinges & a clear PVC glass-to-glass and bottom seal
• Measures 1990mm high x 300mm wide

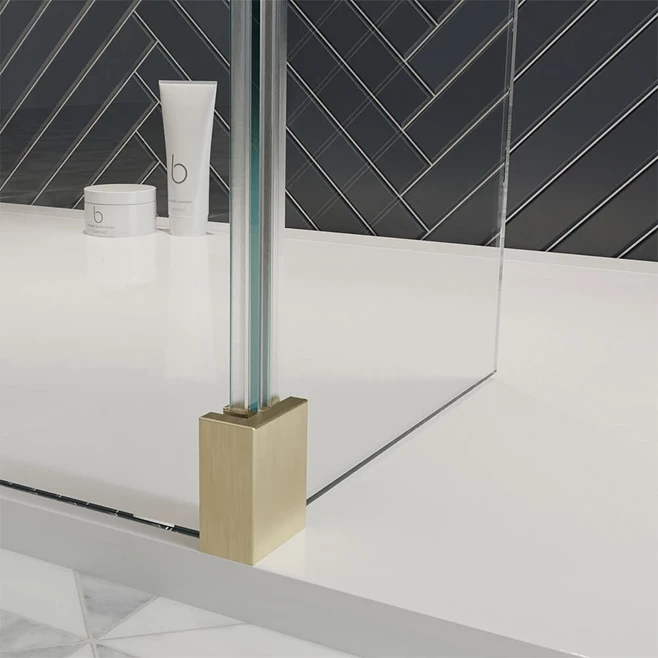

Fixed Deflector 10mm Glass Panel features:
• Provides extra protection against splashing water
• Made from 10mm toughened safety glass with a Crosswater Clear coating
• Fixed at a 90° degree angle
• Comes with brass brackets & a clear PVC glass-to-glass seal
• Optional bottom seal sold separately – please see our recommended extras
• Measures 1997mm high x 255mm wide

Please note: the glass is extremely well packaged to prevent damage in transit.

Wall Profile features:
• Made from 304 Stainless Steel with four wall fitting points
• 2000mm high
• 15mm adjustment for easy fitting against out-of-true (askew) walls
• Comes with a clear PVC squeeze gasket for easy adjustment and stability
• Includes profile cover cap to cover fixtures and fittings
• The wall profile alone can support panels up to 455mm width but panels 555mm and wider will require a bracing bar for additional stability

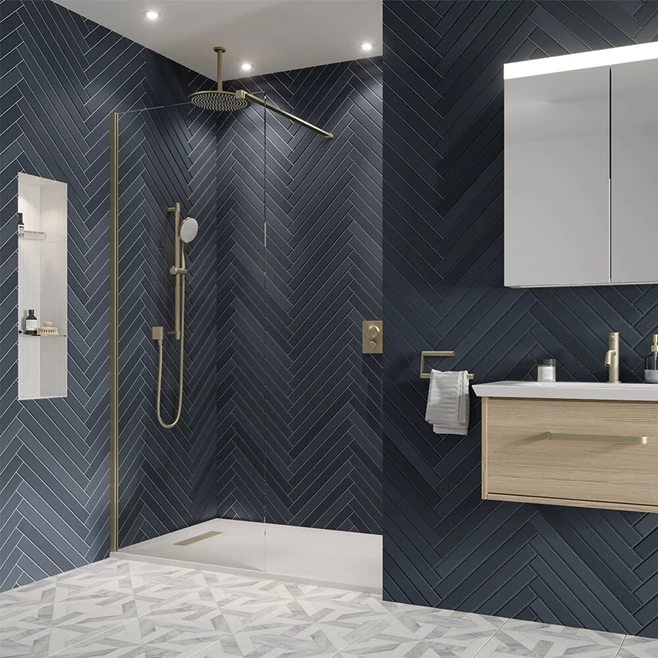

Wall Bracing Bar features:
• Made from 304 Stainless Steel (stabilising bar) & Brass (wall bracket/glass clamp)
• Measures 1200mm and can be cut to size
• Can be used with glass panels with or without a fixed or hinged deflector panel
• One bracing bar can support one fixed panel of maximum width 1355mm

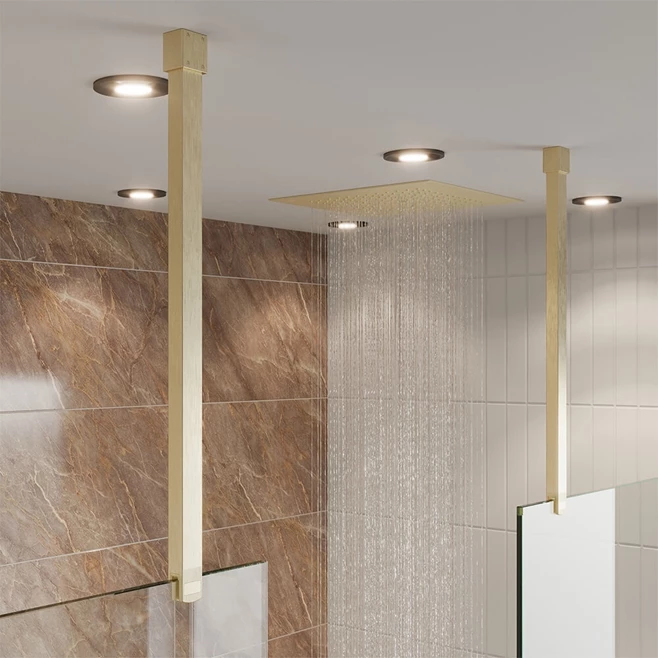

Ceiling Bracing Bar features:
• Ceiling mounted with 2 fitting points
• Made from 304 Stainless Steel (stabilising bar) & Brass (wall bracket/glass clamp)
• Measures 600mm and can be cut to size
• Not suitable for panels over 955mm & any panels with a fixed or hinged deflector panel

T Bracing Bar features:
• Made from 304 Stainless Steel (stabilising bar) & Brass (wall bracket/glass clamp)
• Each bracing bar measures 1200mm and can be cut to size & is supplied with a colour matching T-piece connector
• Suitable for use with 2 fixed panels – 1st panel of maximum width 1355mm & 2nd panel of maximum width 955mm

Fixtures and fittings having been vigorously tested to maintain performance & longevity – tested against: 48 hour salt spray, chemical resistance, humidity & accelerated life cycle.
